Multi-hull ships (vessels, craft, boats) comprise a great variety of types, sizes and applications. At the present time, the main interests in shipbuilding and shipping industries of multi-hull vessels are focused on engine-powered ships. Today thousands catamarans are used as racing, sailing, tourist, fishing boats. Hundreds (about 70%) of fast passenger and car-passenger ferries are catamarans. About 300 semi-submersible drilling and auxiliary platforms are exploited
in the sea. Some ships with outriggers are built, including the experimental ship
“Triton” (UK) and the first and second sister-ships of the series of Littoral Combat Ships, USA . About 70 SWA ships of various purposes and displacement are built.
According to 'monograph' the entire breed of multi hull ships can be classed by the number of
hulls and by the mutual arrangement of the hulls which
includes the shapes and sizes of the hulls.
A very specific and important sub-group of multihulls is Small Waterplane Area
(SWA) multihulls, a twin-hull version if this subgroup is commonly known as
SWATH = Small Waterplane Area Twin Hull.
Fig.1
and
Fig.2

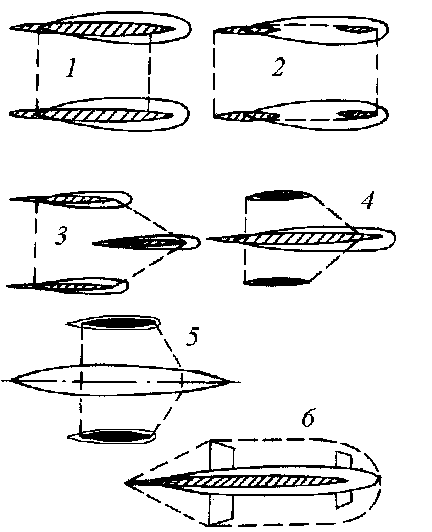

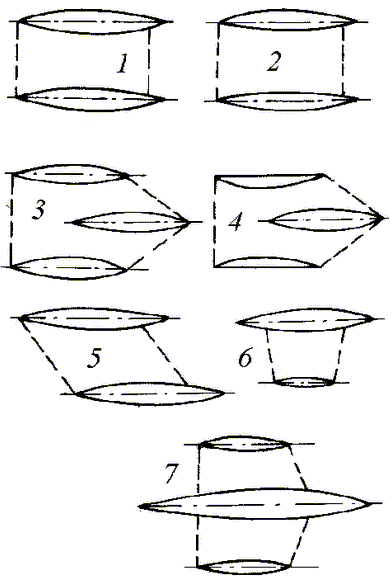

Joint classification is seen in Fig.1 and Fig.2 showing some arrangements of hulls for conventional and SWA
multihulls, both reproduced from.
Numbers in Fig.1 stand for: 1 – catamaran: two identical conventional hulls, 2 – the same with non-symmetric hulls, 3 –
trimaran, with three identical symmetric hulls, 4 – the same with flat outer boards of side hulls, 5 – catamaran with shifted hulls, 6 – proa or a vessel with bigger main hull and smaller side added hull, an outrigger, 7 – ship with
outriggers which is a triple-hull ship with its side hulls being significantly smaller than the central hull. Fig.2 shows a waterplane sections of SWA vessels, here the numbers stand for: 1 – twin-hull SWA ship, each hull consists from the under-water volume ("gondola" or "under-water volume" or "pontoon") and one long strut; the type was named as the first built ship:
"duplus"; 2 – twin-hull SWA ship with two short struts at each hull, the type was named as
"trisec", 3 – triple-hull SWA ship with identical hulls, was named as
"tricore"; 4 – SWA ship with (two) outriggers, 5 – a vessel with a conventional central hull and SWA outriggers, 6 - a monohull SWA vessel with foils. Each type of multi-hulls differs from the other and from the
monohulls. For example, a catamaran has a biggest transverse stability of all ships of the same displacement. A duplus has biggest transverse stability from all SWA ship types. A trisec can have smallest area of water-plane of all
multihulls and monohulls of the same displacement. A
catamaran with longitudinally shifted hulls and any triple-hulled ships can ensure the most favorable interaction of wave systems are generated by the vessel at speed. A ship with
outrigger(s) (proa or trimaran in Western sense) can have smallest relative mass of hull structures. Engine-powered multihull terms. Sometimes, the term “catamaran” is applied to any ship or boat, which consists from two hulls. But a deeper understanding needs for more detail terminology.
The other twin-hull ships are
proa, duplus, trisec. The history of commercial catamarans began in the 17th century in England. Some separate attempts of steam-powered catamaran application were carried out up by the middle of the 20th century. But such ships need for better materials and more developed hydrodynamic for successful application. The second half of the 20th century was the time of wide and in the main successful application of various catamarans on the base of developed science. Sometimes the term “trimaran” is used for any triple-hull ships or boats. But a deeper understanding of ship type characteristics needs for more detailed definition the types. Than hereafter the term “trimaran” is used only for a ship or boat from three identical hulls of traditional shape (the definition is usually for
Russian science since 70-th years.) The other triple-hull ships or boats are outrigger ship,
tricore. The main own specificity of a trimaran is biggest from all possible interaction of wave systems are generated by hulls at speed. The interaction can be favorable and not favorable ones, in dependence from relative arrangement of hulls and relative
speed. Today the built trimarans are absent, only there are some results of model tests and corresponded estimation of the power of the full-scale ships; the calculations show big enough possible advantages at a defined band of the relative speeds. A new type of super-fast vessel, the “wave-piercing” trimaran,
WPT, is known as air-born unloaded (up to 25% of
displacement)vessel, which can ensure twice bigger, as achieved today, speeds with a permissible relative power. Proa is a ship or boat from one hull and one outrigger (small side hull).
The engine in the main hull is more convenient, evidently, but not obligatory one. A ship with one main hull of converntional shape and two side small hulls (outriggers) is named as "outrigger ship". The same type is named as "trimaran" in English language publications. SWA ship Each hull, which has smaller beam at the level of design water-plane, than below it, can be named as a hull with decreased - or small - water-plane area. But more often the term “small water-plane area hull” means a hull from the under-water volume (“gondola”) and one or more thin
strut(s), which connect the gondola with the above-water platform. Any ship or boat, which consists from hulls of small water-plane area, can be named as “small water-plane area ship” or “SWA ship”. Any twin-hull SWA ship is named as “SWATH”. A triple-hull SWA ship is named as “tricore” –today without dependence from the number of struts on each gondola. A ship or
boat from two hulls with one long strut on each hull was named as “duplus” (by the name of the first drilling ship of the type).Today the duplus are most spread type of built SWA
ships. The term “trisec” is used for a twin-hull SWA ship with two struts on each gondola. A trisec can have a minimal area of water-plane, therefore, minimal motions in waves and higher effectiveness of motion control.
An outrigger ship can have the main hull, and/or outriggers of small water-plane area. Mutual arrangerment of hulls. The hulls are connected by the above-water structure, which is named as “platform” or “above-water bridge”. The structure can be watertight partially or as a whole, or can consist of separate frames. The distance between the hulls is named as “transverse clearance” and can be measured by various methods: between center planes of hulls or between the inner boards. The distance between the design water-plane and the bottom of the above-water platform (“wet deck”) is named as “vertical clearance”. The longitudinal distance between a triple-hull ship is named as “longitudinal clearance” and can be measured between the middles of hulls or between their fore perpendiculars. Specificity of
multihulls. The difference of geometry defines some sufficient differences of ship characteristics. Some differences ensure some technical and exploitation advantages and disadvantages for ships of various purposes. All multihulls have the following common specificity: - Widest possibility of geometry variations; - Relatively bigger, than in the comparable
monohulls, area of decks, upper and inner ones. - It means the possibility of relative bigger inner volume of watertight above-water platform, which connects the hulls. - Independence of transverse stability from single hull lengthening; the stability strongly depends from the transverse clearance. - It means a possibility of simple enough ensuring of transverse stability of any multihull type. - Besides, it means the possibility of a wide variation of hull lengthening for higher performance. - Higher
non-sink-ability because of big enough volume of the above-water platform. - Higher safety and survivability of energy sources because of power engine dividing by parts are distant each from the other. - Relative bigger overall beam. - More or less higher (in the dependence of the multihull type) seaworthiness in the comparison with the monohull of the same displacement. All ships with small-water-plane area, SWA ships, have smaller motions of any kind and external wave forces and moments, except the case of sailing in following waves. All systems of motion mitigation are the most effective ones for SWA ships.
ADVANTAGES and DISADVANTAGES of MULTIHULLS
As follows from, the specificity of multi-hulls can be an advantage for defined purposes, as below. The greater range of geometric variability allows to designers wide possibilityes of characteristic optimization in accordance with practical needs; the possibility of lower wave-making resistance (as a sufficient part of towing resistance ) is a sufficient advantage for high-speed and fast ships; the towing resistance can be significantly decreased by a rational selection of hull aspect ratio (twin-hull ships) and arrangement of hulls to take the most benefits of the interference between the wave systems generated by each hull (triple-hull ships); significantly greater area of decks and volume of closed (including watertight) and open spaces for payload; as a result, a multi-hull vessel can be a preferred choice for shipping high-volume and light-specific-weight payload (passengers, automobiles, etc.); transverse stability is independent of the aspect ratio of any hull, but depends on the transverse distance between the hulls at degree two; as a result, the transverse stability can be comparable with longitudinal stability, or even exceed it in some cases; it means wider possibility of dimension optimization without any restrictions by the transverse stability; a possibility of increasing the
non-sinkability of the vessel by providing watertightness to the volume of the above-water platform and its rational dividing by water-tight bulkheads; it means higher safety of all multi-hulls in a comparison with the
monohulls; higher safety and survivability of power plant machinery due to greater variability of the safest accommodation of its main components; it means higher survivability of all multi-hulls, especially - of combat ones; higher seaworthiness means higher part of time of sailing, when all needed demands of passenger and crew comfort are fulfilled.
The main disadvantages of multi-hull ships, as compared to
monohulls, are the following:
*
the wider overall beam of a multihull vessel is often a problem for conventional docking;
*
the relatively greater total wetted area increases the frictional component of water resistance of the vessel, and thus the total resistance at low
speeds (though this may balance out if eliminating wave
resistance significantly;
*
the weight of hull structures per ton of displacement is greater than that of
monohulls;
*
assembly of a multi-hull vessel in a shipyard takes a wider area;
*
as a result, the construction cost and maintenance (in dry dock) can be
greater - but careful design can actually decrease
construction costs.
