PLANETSOLAR - SWISS MARINE CONCEPT BOAT







The 12.5 million euro Tūranor PlanetSolar, had to start somewhere. Below are some photographs of a scale model and computer generated images of the concept at various design stages. You can see that a number of changes took place for practicality. The wings are not curved on the final boat for example and do not tilt as shown by the models.



The conceptual stage, usually involves producing many models. Indeed, the model and concept shown on this page differ considerably in concept from the earlier trimaran design. As a designer myself, I find that I learn a great deal about the handling and sea-keeping qualities of a hull by making a large scale model and floating it in a test tank. From experience I can tell you that it's far better to experiment with models - far cheaper and less time consuming. Start with a small paper or cardboard model. If that works well, build a 1/20th or if you are brave, 1/10th scale model, which I would then take to radio control for open water testing.

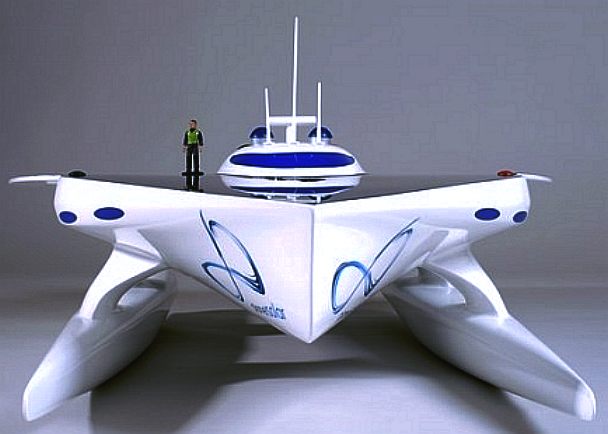

Swiss design concept planetsolar



Tūranor PlanetSolar spreads her wings wide to capture the sun







The MS Tūranor PlanetSolar sailed almost 60’000 km across every ocean powered only by energy from nature. The conceptual designers and marine architects deserve praise for daring to take Raphaėl Domjan's dream to the next stage.





This magnificent boat (the full size one) entered the record books as the first electric boat to complete a (585 day) world circumnavigation. She arrived at the Hercule Harbour in Monaco on Friday the 4th of May at 2:15p.m.















LINKS:

  1. Technical Data Sheet". PlanetSolar. http://www.das-solarboot.de/technical-data-sheet.html.

  2. "Tūranor PlanetSolar". Knierim Yachtbau. http://www.knierim-yachtbau.de/html/gb/yachts/planet-solar.php.

  3. "The solar boat PlanetSolar is launched during ceremony in Kiel". Reuters. http://www.fotoglif.com/f/eid4m89dm74f.

  4. Pilato, Fabrizio (February 26, 2010). "PlanetSolar set to sail in March". Mobile Magazine. http://www.mobilemag.com/2010/02/26/38000-photovaltaic-solar-cells-set-to-sail-in-march/.

  5. Gaylord, Chris (February 26, 2010). "PlanetSolar: The sun-powered super yacht". The Christian Science Monitor. http://www.csmonitor.com/Innovation/Horizons/2010/0226/PlanetSolar-The-sun-powered-super-yacht.

  6. "First around the World with solar Energy". PlanetSolar. http://www.planetsolar.org/bateau.en.php.

  7. "PlanetSolar Unveils World's Largest Solar Boat". Environment News Service. February 27, 2010. http://www.ens-newswire.com/ens/feb2010/2010-02-27-02.html.

  8. Kharrl, Nate (April 13, 2009). "Solar Planet Plans to Circle the Earth on Solar Power". Eco Factory. http://www.ecofactory.com/news/solar-planet-begins-construction-sun-powered-boat.

  9. "PlanetSolar". LOMOcean Design. http://lomocean.com/project.php?id=7. Retrieved 2010-04-24.

  10. Behling, Frank (24 April 2010). "Das Solarschiff fährt" (in German). Kieler Nachrichten. http://www.kn-online.de/lokales/kiel/148722-Das-Solarschiff-faehrt.html.

  11. "A Milestone in the Progress of Solar Mobility". PlanetSolar. http://www.das-solarboot.de/index.html.

  12. planetsolar.org

  13. lomocean.com

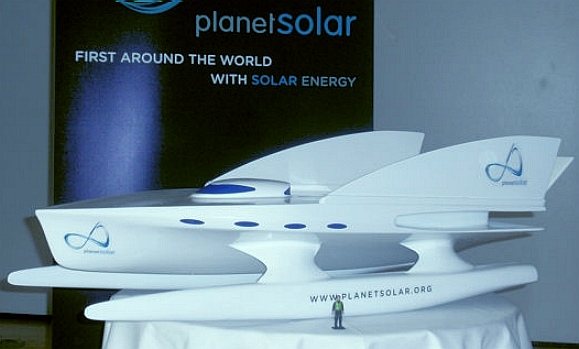

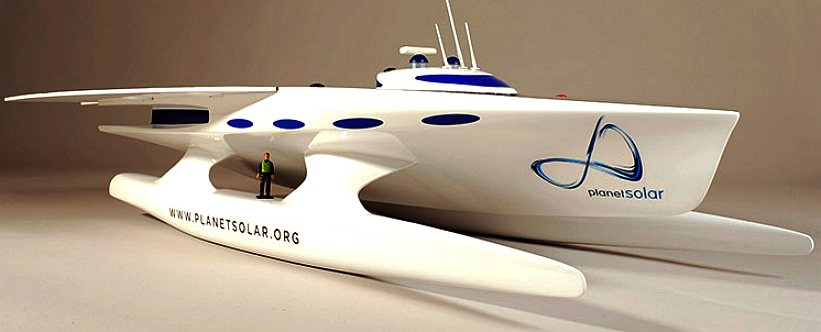

Tūranor PlanetSolar Swiss promotional development model



Tūranor PlanetSolar Swiss promotional development model







THE BOATS SPECIFICATIONS:





Switzerland
Name: Tūranor PlanetSolar
Owner: PlanetSolar SA
Builder: Knierim Yachtbau, Kiel, Germany
Cost: €12.5 million
Launched: 31 March 2010
General characteristics
Class and type: Yacht
Displacement: 85 metric tons
Length: 31 m (35 m with flaps)
Beam: 15 m (23m with flaps)
Propulsion: 2 Permanent Magnet Synchronous Electrical Motors - 60kW each (max) @ 1600 rpm
2 Permanent Magnet Synchronous Electrical Motors - 10kW each (max) @ 1000 rpm
Speed: max.: 14 knots (26 km/h)
cruising (est.): 7.5 knots (14 km/h)
Crew: 4







PlanetSolar is currently the biggest solar ship in the world (at 17-4-12). 537 m2 of photovoltaic panel power 6 blocks of lithium-ion batteries. This technology offers maximum power and energy density, thus enabling a navigation time that is unmatched to date!







Raphael Domjan and Gerard d Aboville admire the development model of the Tūranor PlanetSolar



Raphael Domjan and Gerard d Aboville admire the development model of the Tūranor PlanetSolar









Gerard d Aboville and Raphael Domjan with the original PlanetSolar trimaran model design



Gerard d Aboville and Raphael Domjan with the original PlanetSolar trimaran model design















Design concept - Construction Raphael Domjan  PROMOTIONAL TOUR 2012

English - Swiss - French - History - Links - Homecoming



2013 Geneva University Deepwater Gulf Expedition



LondonParis - Rio de Janeiro - Gerard d'Arboville

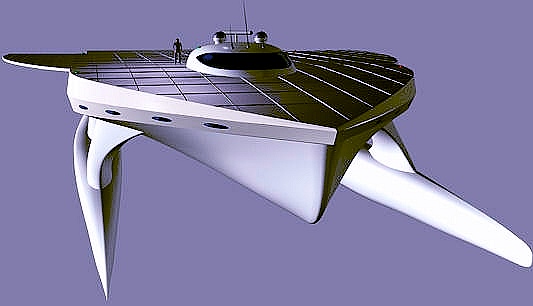

Tūranor PlanetSolar Swiss boat concept drawing of the hull underside

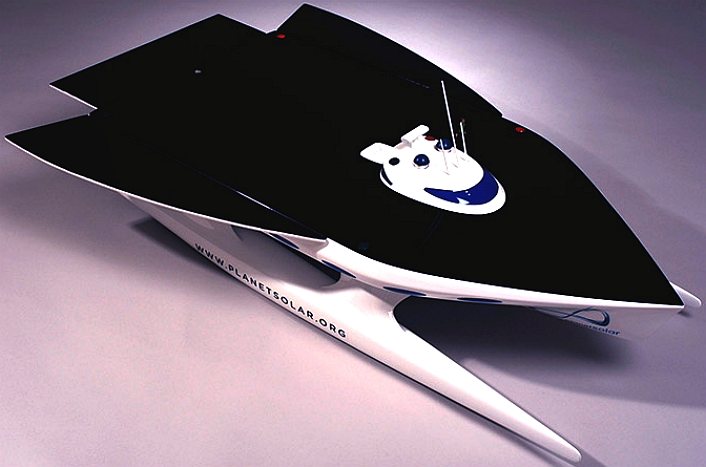

Tūranor PlanetSolar Swiss boat concept drawing of the hull underside & catamaran model topside












SOLAR BOAT LINKS  -





"Only those who are crazy enough to think they can change the world, will!"  -  Henry Dunant







Solar Navigator triple hull SWASH trimaran tank test model



The Solar Navigator - SWASSH (Small Waterplane Area Stabilized Single Hull) test model 2012

The latest Solarnavigator is designed to be capable of an autonomous world navigation set for an attempt

in 2015 is all goes according to schedule.
