Drones are firing more weapons than conventional warplanes for the first time in Afghanistan and the ratio is rising, previously unreported US Air Force data for 2015 show, underlining how reliant the military has become on unmanned aircraft.
The data show strikes by unmanned aircraft accounted for 56% of weapons deployed by the air force in Afghanistan in 2015, up dramatically from 5% in 2011.
In the first quarter of 2016, about 300 weapons were deployed by the air force, with drones accounting for 61%.
The trend may give clues to the US military’s strategy as it considers withdrawing more troops from the country, while at the same time shoring up local forces who have struggled to stem a worsening Taliban insurgency.
In 2015, drones released about 530 bombs and missiles in Afghanistan, half the number in 2014 when weapons dropped by unmanned aircraft peaked.
The 2015 total is, however, almost double the number of bombs and missiles released by drones at the height of the “surge”, when the
Nato mission expanded to well over 100,000 troops, mainly Americans, after 2009.
President Barack Obama said in 2013 the Afghan drawdown after 2014 and progress against al-Qaida would “reduce the need for unmanned strikes”, amid concerns from human rights groups and some foreign governments about civilian casualties.
On one level, that has played out; the number of missiles and bombs dropped by drones in Afghanistan actually fell in 2015, largely because the US-led Nato mission ceased combat operations at the end of 2014 and is now a fraction of the size.
Yet as the force has shrunk, it has leant on unmanned aircraft more than ever, the Air Force data reveals, with drone strikes accounting for at least 61% of weapons deployed in the first quarter of this year.
“In recent months it’s definitely flowed more,” Lieutenant Colonel Michael Navicky, commander of the 62nd Expeditionary Reconnaissance Squadron, said of the tempo of both drone strikes and surveillance operations.
“We’ve seen increased weapons deployment in the past few months, and the demand is insatiable,” he said from a US air base in the southern city of Kandahar.
The longer-term shift towards drones has gone largely unnoticed amid the large conventional air campaign.
The role of drones is likely to form a key part of a review underway by US General John Nicholson, head of Nato troops in Afghanistan, as he prepares to report to Washington in June on how many soldiers he thinks should remain.
Nicholson declined to discuss details of the review in a recent interview with Reuters.
The current plan is to roughly halve the US presence to 5,500 troops by 2017, most involved in counter-terrorism operations. The training and advising mission would be largely wound down.
Like much of the US military machine in Afghanistan, the drone operation had been winding down in line with plans for further withdrawals, Navicky said.
At the end of 2015, however, military commanders “hit the brakes and reversed course” on the drone reduction, and have since ordered more airstrikes, especially against Islamic State militants who pose a threat in the east, he said.
The Taliban have also forged closer links with al-Qaida, Nicholson said, potentially blurring the lines between what is a legitimate target and what is not, while the Taliban themselves have made gains in the north and south.
The data cover strikes conducted by the Air Force, which handles the majority of Afghan air operations.
The CIA, US Army, and special operations units also have smaller fleets of drones and other aircraft, so the air force data may reflect a redistribution among different organisations, although they tend to coordinate closely on missions.
Drone missions are secretive and have been widely criticised in Afghanistan and
Pakistan, where locals and officials have blamed them for unnecessary loss of civilian life.
In the latest instance, residents in Paktika province complained that a series of airstrikes in April, which locals said were from drones, killed nearly 20 civilians. The US military said it was still looking into the incident.
Activists and investigators have focused on covert air operations in places such as Pakistan and
Yemen, leaving Afghanistan as “really a blind spot for drone analysis”, said Sarah Kreps, a professor at Cornell University who studies unmanned aircraft.
“The strikes in Afghanistan are one of the most under-reported aspects of drones.”
In a time of troop limits imposed by leaders in Washington, the drone squadron is especially useful as only about 200 of nearly 1,000 personnel who support and operate the aircraft are deployed to
Afghanistan, Navicky said.
“Remotely piloted aircraft mean more flexibility with fewer people and aircraft,” he said. “Because they are unmanned, sometimes you can accept more risk. All that is always going to be valuable.”
ABOUT
THE GRIM REAPER
The General Atomics MQ-9 Reaper (formerly called Predator B) is an unmanned aerial vehicle (UAV), capable of remote controlled or autonomous flight operations, developed by General Atomics Aeronautical Systems (GA-ASI) for use by the United States Air Force, the
United States Navy, the CIA, U.S. Customs and Border Protection, the Royal Air Force, and the Italian Air Force. The MQ-9 and other UAVs are referred to as Remotely Piloted Vehicles/Aircraft (RPV/RPA) by the U.S. Air Force to indicate their human ground
controllers. The MQ-9 is the first hunter-killer UAV designed for long-endurance, high-altitude
surveillance.
The MQ-9 is a larger, heavier, and more capable aircraft than the earlier MQ-1 Predator; it can be controlled by the same ground systems used to control MQ-1s. The Reaper has a 950-shaft-horsepower (712 kW) turboprop engine, far more powerful than the Predator's 115 hp (86 kW)
piston engine. The power increase allows the Reaper to carry 15 times more ordnance payload and cruise at almost three times the speed of the
MQ-1. Although the MQ-9 can fly pre-programmed routes autonomously, the aircraft is monitored or controlled by aircrew in the Ground Control Station (GCS) and weapons employment is commanded by the flight
crew.
In 2008, the New York Air National Guard 174th Fighter Wing began the transition from F-16 piloted fighters to MQ-9 Reapers, becoming the first fighter squadron conversion to an all–unmanned combat air vehicle (UCAV) attack
squadron. As of March 2011, the U.S. Air Force was training more pilots for advanced unmanned aerial vehicles than for any other single weapons
system.
Then Chief of Staff of the United States Air Force General T. Michael Moseley said, "We've moved from using UAVs primarily in intelligence, surveillance, and reconnaissance roles before Operation Iraqi Freedom, to a true hunter-killer role with the
Reaper."
DEVELOPMENT
With the success of the MQ-1 in combat, General Atomics anticipated the Air Force's desire for an upgraded aircraft and, using its own funds, set about redesigning Predator.
Prototype "Predator B"
General Atomics began development of the Reaper with the "Predator B-001", a proof-of-concept aircraft, which first flew on 2 February 2001. The B-001 was powered by an Allied Signal Garrett AiResearch TPE-331-10T turboprop engine with 950 shp (712 kW). It had an airframe that was based on the standard Predator airframe, except with an enlarged fuselage and wings lengthened from 48 feet (14.6 m) to 66 feet (20 m). The B-001 had a speed of 220 knots (390 km/h) and could carry a payload of 750 pounds (340 kilograms) to an altitude of 50,000 feet (15.2 kilometers) with an endurance of 30
hours.
The company refined the design, taking it in two separate directions. The first was a jet-powered version; "Predator B-002" was fitted with a Williams FJ44-2A turbofan engine with 10.2 kN (2,300 lbf, 1,040 kgf) thrust. It had payload capacity of 475 pounds (215 kilograms), a ceiling of 60,000 feet (18.3 kilometers) and endurance of 12 hours. The U.S. Air Force ordered two airframes for evaluation, delivered in
2007. The first two airframes delivered with prototypes B-001 and B-002 (now in the USAF museum at Wright-Patterson AFB). B-002 was originally equipped with the FJ-44 engine but it was removed and a TPE-331-10T was installed so that the USAF could take delivery of two aircraft in the same configuration.
The second direction the design took was the "Predator B-003", referred to by GA as the "Altair", which has a new airframe with an 84-foot (25.6 m) wingspan and a takeoff weight of about 7,000 pounds (3,175 kg). Like the Predator B-001, it is powered by a TP-331-10T turboprop. This variant has a payload capacity of 3,000 pounds (1,360 kg), a maximum ceiling of 52,000 feet (15.8 km), and an endurance of 36
hours.
US
AIRFORCE VERSION
In October 2001, the U.S. Air Force signed a contract with GA to purchase an initial pair of Predator B-003s for evaluation, with follow-up orders for production machines. The first test MQ-9s were delivered to the Air Force in 2002. The name "Altair" did not follow the aircraft into testing, with the Air Force continuing to refer to the system as "Predator B" until it was renamed Reaper ("Altair" instead became the designation for the unarmed NASA version); this is confusing, however, as the manufacturer uses the term to refer to the smaller B-001
prototype.

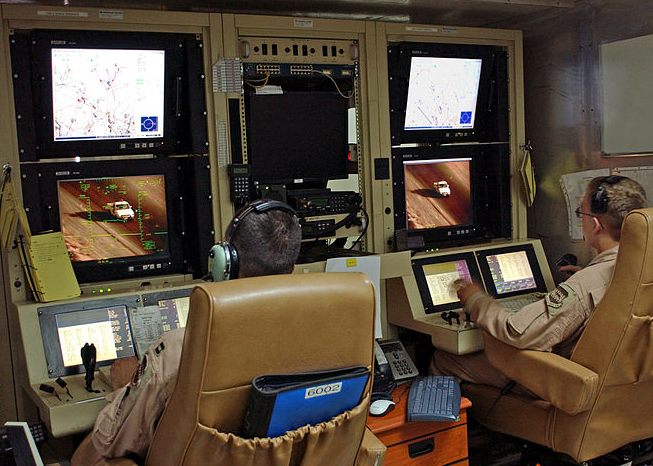

Operators, stationed at bases such as Creech Air Force Base, near Las Vegas, can hunt for targets and observe terrain using a number of sensors, including a thermal camera. One estimate has the on-board camera able to read a license plate from two miles (3 km)
away. An operator's command takes 1.2 seconds to reach the drone via a satellite link. The MQ-9 is fitted with six stores pylons. The inner stores pylons can carry a maximum of 1,500 pounds (680 kilograms) each and allow carriage of external fuel tanks. The mid-wing stores pylons can carry a maximum of 600 pounds (270 kilograms) each, while the outer stores pylons can carry a maximum of 200 pounds (90 kilograms) each. An MQ-9 with two 1,000 pound (450 kilogram) external fuel tanks and a thousand pounds of munitions has an endurance of 42
hours. The Reaper has an endurance of 14 hours when fully loaded with
munitions. The MQ-9 carries a variety of weapons including the GBU-12 Paveway II laser-guided bomb, the AGM-114 Hellfire II air-to-ground missiles, the AIM-9
Sidewinder, and recently, the GBU-38 JDAM (Joint Direct Attack Munition). Tests are underway to allow for the addition of the AIM-92 Stinger air-to-air missile.
The Air Force believed that the Predator B would give the service an improved "deadly persistence" capability, with the RPV flying over a combat area night and day waiting for a target to present itself. In this role an armed RPV neatly complements piloted strike aircraft. A piloted strike aircraft can be used to drop larger quantities of ordnance on a target while a cheaper RPV can be kept in operation almost continuously, with ground controllers working in shifts, carrying a lighter ordnance load to destroy
targets. In March 2011 U.S. Department of Defense Secretary Robert Gates stated that, while manned aircraft are needed, the Air Force must recognize “the enormous strategic and cultural implications of the vast expansion in remotely piloted vehicles” that already play a major role over Afghanistan and Iraq. “The view still lingers in some corners that, once I depart as secretary and once U.S. forces draw down from Iraq and Afghanistan in accordance with the president’s and NATO’s strategy, things can get back to what some consider to be real Air Force normal,” he said. “This must not happen.” Even as it buys new manned fighters and bombers, the Air Force must give equal weight to unmanned drones and “the service’s important role in the cyber and space
domains.”
By October 2007, the U.S. Air Force owned nine Reapers, and by December 2010 owned 57 with plans to buy another 272, for a total buy of 329
Reapers. On 18 May 2006, the Federal Aviation Administration (FAA) issued a certificate of authorization that allows the MQ-1 and MQ-9 aircraft to fly in U.S. civilian airspace to search for survivors of disasters. Requests had been made in 2005 for the aircraft to be used in search and rescue operations following
Hurricane Katrina but, because there was no FAA authorization in place at the time, the planes were not
used.
In September 2007, the MQ-9 deployed into Iraq at Balad, the largest U.S. air base in
Iraq. On 28 October 2007, the Air Force Times reported an MQ-9 had achieved its first "kill", firing a Hellfire missile against Afghanistan insurgents in the Deh Rawood region of the mountainous Oruzgan province. The strike was a success, as stated by the United States Central Command Air
Forces.
Critics have stated that the USAF's insistence on qualified pilots flying RPVs is a bottleneck to expanding their deployment. Air Force Major General William Rew stated on 5 August 2008, "For the way we fly them right now"—fully integrated into air operations and often flying missions alongside manned aircraft—"we want pilots to fly
them." This may be exacerbating losses of Air Force aircraft, in comparison with US Army
operations.
The typical MQ-9 system consists of multiple aircraft, ground control station, communications equipment and links, maintenance spares, and military (or contractor) personnel. The crew consists of a pilot and sensor operator. To meet combat requirements, the MQ-9 tailors its capabilities using mission kits of various combinations of weapons and sensors payloads. The Raytheon AN/AAS-52 multi-spectral targeting sensor suite includes a color/monochrome daylight TV, infrared, and image-intensified TV with laser rangefinder/target designator to designate targets for laser guided munitions. The Synthetic Aperture Radar system enables GBU-38 JDAM targeting, is capable of very fine resolution in both spotlight and strip modes, and has ground moving target indicator capability.
Testbed and Upgrades
The Reaper is being used as a testbed for Gorgon Stare, a wide-area surveillance sensor
system.
In January 2012, General Atomics made available a new trailing arm design for the main landing gear of the Reaper. Benefits of the new gear include a 30%+ increase in landing weight capacity, an increase in gross takeoff weight by approximately 12% (10,500 lb vs. 11,700 lb), a maintenance-free shock absorber, which eliminates the need for nitrogen pressurization, a fully rejected takeoff brake system at a growth maximum weight of 11,700 lb, and includes provisions for automatic takeoff and landing capability and Anti-lock Brake System (ABS) field
upgrades.
In April 2012, General Atomics announced possible upgrades to Air Force Reapers. They include adding two fuel pods under the wings, each with about 100 gallons of fuel, and installing their new heavy-weight landing gear. This would increase endurance to 37 hours. The wingspan can also be increased to 88 ft, increasing endurance to 42
hours.
Design
The typical MQ-9 system is composed of multiple aircraft, ground-control stations, satellites, and flight and maintenance
crews. The aircraft is powered by a 950 horsepower turboprop, with a maximum speed of about 260 knots (300 miles per hour or 483 km per hour) and a cruising speed of 150-170 knots (278 to 315 km/hour). With a 66 foot wingspan, and a maximum payload of 3800 lb, the MQ-9 can be armed with a variety of weaponry, including Hellfire missiles and 500-lb laser-guided bomb
units.
The Reaper has a range of 3,682 miles and an operational altitude of 50,000
ft, which make it especially useful for long-term loitering operations, both for surveillance and support of ground troops.
OPERATIONAL
HISTORY
USAF
On 1 May 2007, the 432d Wing of the U.S. Air Force was activated to operate MQ-9 Reaper as well as MQ-1 Predator UAVs at Creech Air Force Base, Nevada. The pilots first conducted combat missions in Iraq and Afghanistan in the summer of
2007. In October 2007 the USAF was flying operational missions in
Afghanistan. As of 6 March 2008, according to USAF Lieutenant General Gary North, the Reaper has attacked 16 targets in Afghanistan using 500 lb (230 kg) bombs and Hellfire missiles. On 4 February 2008 the MQ-9 dropped a bomb on a truck carrying an insurgent mortar and team near
Kandahar.
On 17 July 2008, the Air Force began flying Reaper missions within Iraq from Balad Air
Base. It was reported on 11 August 2008 that the 174th Fighter Wing of the USAF will consist entirely of
Reapers. By March 2009 the U.S. Air Force had 28 operational Reapers.
On 13 September 2009, an MQ-9 was flying a combat mission over Afghanistan when positive control of the aircraft was lost resulting in the drone flying out of control towards the Afghan border with Tajikistan.[36] An F-15E Strike Eagle was sent to destroy it; the Reaper's engine was disabled with an AIM-9 missile. The satellite link with the vehicle was restored immediately after, leaving the operator no option other than to steer it into a mountainside along with its ordnance. It was the first time a US drone was destroyed intentionally by allied
forces.
Beginning in September 2009, Reapers were deployed by the Africa Command to the Seychelles islands for use in Indian Ocean anti-piracy
patrols.
As of July 2010, 38 Predators and Reapers have been lost during combat operations in Afghanistan and Iraq, with another 9 crashing during training operations in the
U.S. The U.S. Air Force conducted more than 33,000 close air support mission flights in 2010, an increase of more than 20 percent compared with
2009. As of March 2011, the U.S. Air Force had 48 Predator and Reaper combat air patrols flying in Iraq and Afghanistan compared with 18 in
2007.
As of March 2011, the U.S. Air Force was training more pilots for advanced unmanned aerial vehicles than for any other single weapons
system.
In October 2011, the U.S. Air Force began operating Reapers out of Arba Minch in Ethiopia. It has been reported that these shall be used for surveillance only operations over
Somalia.
On 13 December 2011 an Air Force MQ-9 Reaper crashed at the Seychelles International Airport in Mahe, located in the Indian Ocean, 1,500 miles east of mainland Africa. The MQ-9 was not armed and no injuries were reported. The cause of the incident is
unknown.
Reapers and Predator drones were deployed in Benghazi, Libya after the attack that killed the US Ambassador in that
city.
NASA
NASA had initially expressed some interest in a production version of the B-002 turbofan-powered
variant, but instead has leased an unarmed version of the Reaper, which carries the GA-ASI company name "Altair". Altair is one of the first 3 "Predator-B" airframes. The other 2 airframes, known as "Predator-B 001" and "Predator-B 002", had a maximum gross weight of 7,500 pounds (3,400 kg). Altair differs from these models in that it has an 86-foot (26 m) long wingspan (20 feet greater than early and current MQ-9s). The Altair has enhanced avionics systems to better enable it to fly in FAA-controlled civil airspace and demonstrate "over-the-horizon" command and control capability from a ground station. These aircraft are used by NASA's Earth Science Enterprise as part of the NASA ERAST Program to perform on-location science
missions.
In November 2006, NASA's Dryden Flight Research Center obtained an MQ-9 from General Atomics Aeronautical Systems. The aircraft has been named Ikhana and its main goal is the Suborbital Science Program within the Science Mission Directorate. NASA also acquired a ground control station in a mobile
trailer. This aircraft was used extensively to survey the Southern California wildfires in 2007. The data was used to deploy firefighters to areas of the highest need.
The California Office of Emergency Services requested NASA support for the Esperanza Fire, and in under 24 hours the General Atomics Altair was launched on a 16 hour mission to map the perimeter of the fire. The Altair had just returned from a test mission a day before the Esperanza Fire started. The fire mapping research is a joint project with NASA and the US Forest Service.
HOMELAND
SECURITY
U.S. Customs and Border Protection (CBP) operates seven MQ-9s. Two are based in North Dakota at Grand Forks Air Force Base and three are based in Arizona, at Fort
Huachuca. These aircraft are equipped with GA-ASI's Lynx synthetic aperture radar and Raytheon's MTS-B electro-optical infrared
sensors. CBP also has two maritime MQ-9's called Guardians based at Cape Canaveral Air Force Station, Florida and Naval Air Station Corpus Christi,
Texas. The Guardians are equipped with the SeaVue marine search radar; their electro-optical infrared sensor is optimized for maritime
operations.
The United States Department of Homeland Security initially ordered one Predator B for border protection duty, referred to as MQ-9 CBP-101. It began operations 4 October 2005 and crashed in the Arizona desert on 25 April 2006. The NTSB determined (Record Identification:
CHI06MA121) that the cause of the crash was most likely pilot error by the aircraft's ground-based pilot in the use of a checklist. During its operational period, the aircraft flew 959 hours on patrol and had a part in 2,309 arrests. It also contributed to the seizure of four vehicles and 8,267 pounds (3,750 kg) of
marijuana. Because of these successes, a second Predator B, called "CBP-104" (initially referred to as "CBP-102"), was delivered in September 2006 and commenced limited border protection operations on 18 October 2006. The program was further expanded on 16 February 2009, including
Canadian border patrols where US officials were concerned about the exploitation of the border by "drug smugglers, migrants and
terrorists".
The CBP-101 was equipped with the Lynx SAR, AX-15 payload, ARC-210 radios, and other sensors and communications equipment; CBP-104 was enhanced with Ku-band satellite command and control link and an
MTS-A EO/IR sensor.
The President’s FY 2006 emergency supplemental budget request added $45 million for the program and the FY 2007 Homeland Security appropriations bill added an additional $20 million. In October 2006, GA-ASI announced a $33.9 million contract to supply two more Predator B systems by the fall of
2007.
In the 25 April 2006 accident involving aircraft CBP-101, the pilot, remotely operating the vehicle from Sierra Vista Municipal Airport, reported a momentary lockup of the displays on the primary control console. The pilot switched control to a secondary console without following the checklist and inadvertently shut down the vehicle's engine, causing it to descend out of reach of communications and ultimately crash near Nogales, Arizona.
OTHER
USERS
Australia
In September 2006, the General Atomics Mariner demonstrator aircraft was operated by the Australian Defence Science and Technology Organisation (DSTO) in an exercise designed to evaluate the aircraft's ability to aid in efforts to stem illegal fishing, drug running and illegal immigration. The Mariner operated from RAAF bases Edinburgh, South Australia and Learmonth, Western
Australia in conjunction with a Royal Australian Navy Armidale class patrol boat, the Joint Offshore Protection Command and the Pilbara
Regiment.
United Kingdom
On 27 September 2006, the U.S. Congress was notified by the Defense Security Cooperation Agency that the United Kingdom was seeking to purchase a pair of MQ-9 Reapers. They are operated by No. 39 Squadron RAF from Creech Air Force Base,
Nevada. A third MQ-9 was in the process of being purchased by the RAF in
2007. In December 2010, the UK Ministry of Defence announced that it would increase its fleet of Reapers to
10.
On 9 November 2007, the UK Ministry of Defence announced that its MQ-9 Reapers had begun operations in Afghanistan against the
Taliban. In April 2008, following the crash of one of the UK's two Reapers, British special forces were sent to recover sensitive material from the wreckage before it was blown up to prevent the enemy from obtaining
it.
The second squadron to operate the MQ-9 Reaper for the RAF will be XIII Sqn, due to formally stand up on 26 October
2012. The squadron will operate from RAF Waddington in Lincolnshire.
Germany
Germany has made a request to purchase five Reapers and four ground control stations, plus related support material and training. The request, being made through the Foreign Military Sales process, was presented to Congress through the Defense Security Cooperation Agency on 1 August 2008 and is valued at US$205
million. However, Germany did not go through with this procurement for the time being and decided to lease the IAI Heron offered by IAI and Rheinmetall instead, initially for the duration of one year, representing a stop-gap measure before a long-term decision on a MALE-system is being
made.
Italy
On 1 August 2008, Italy submitted a FMS request through the Defense Security Cooperation Agency for four aircraft, four ground stations and five years of maintenance support, all valued at US$330
million. Italy ordered two more aircraft in November 2009. On 30 May 2012, it was reported that U.S. plans to sell kits to arm Italy's 6 Reapers with Hellfire missiles and laser-guided
bombs.
Dominican Republic
The operation of the Predator UAV "Guardian" by the Dominican Republic under U.S. supervision and funding, was revealed on the national news in July 2012. The program had been running for more than a month prior to that
announcement.
Variants
Naval version
General Atomics designed a naval version of the Reaper, named the "Mariner", for the U.S. Navy's Broad Area Maritime Surveillance (BAMS) program requirements. The design would have an increased fuel capacity in order to have an endurance of up to 49
hours. Proposed variations on the ultimate design included one designed for carrier operations with folding wings for carrier storage, shorter and more rugged landing gear, an arresting hook, cut-down or eliminated ventral flight surfaces and six stores pylons with a total load of 3,000 pounds (1,360
kilograms). The Northrop Grumman RQ-4N was announced the BAMS winner.
The US Customs and Border Protection (CBP) operates two maritime variants of the MQ-9, known as
Guardians. The U.S. Coast Guard is evaluating the Guardian, including performing joint operations with
CBP.
MQ-9 Block 1-Plus
On 24 May 2012, General Atomics conducted the successful first flight of its upgraded MQ-9 Block 1-plus Reaper. The Block 1-plus was designed for increased electrical power, secure communications, auto land, increased Gross Takeoff Weight (GTOW), weapons growth, and streamlined payload integration capabilities. Featuring a new high-capacity starter generator, the aircraft offers an increase in electrical power capacity over the current Block 1 design. This increased power provides the aircraft with significant capacity for growth. The upgraded electrical system includes a backup generator which is sufficient to support all flight critical functions. This vastly improves the reliability of the electrical power system by providing three independent power sources.
New communications capabilities will be available, including dual ARC-210 VHF/UHF radios with wingtip antennas, allowing for simultaneous communications between multiple air-to-air and air-to-ground parties; secure data links; and an increased data transmission capacity. The new trailing arm main landing gear will be included, enabling the aircraft to carry heavier payloads or additional fuel. Development and testing have been completed, and Milestone C is expected to be achieved in Fall 2012. Follow-on aircraft will be redesignated MQ-9 Block
5.
TECHNICAL
SPECIFICATIONS
General characteristics
Crew: 0 onboard, 2 in ground station
Length: 36 ft 1 in (11 m)
Wingspan: 65 ft 7 in (20 m)
Height: 11 ft 10 in (3.6 m)
Empty weight: 4,901 lb (2,223 kg)
Max takeoff weight: 10,494 lb (4,760 kg)
Fuel capacity: 4,000 lb (1,800 kg)
Payload: 3,800 lb (1,700 kg)
Internal: 800 lb (360 kg)
External: 3,000 lb (1,400 kg)
Powerplant: 1 × Honeywell TPE331-10 turboprop, 900 hp (671 kW) with Digital Electronic Engine Control
(DEEC)
Performance
Maximum speed: 555 mph; 893 km/h (482 kn)
Cruise speed: 360 mph; 580 km/h (313 kn)
Range: 999 nmi; 1,150 mi (1,850 km)
Endurance: 14 hours fully loaded[79]
Service ceiling: 50,000 ft (15,000 m)
Operational altitude: 25,000 ft (7.5 km)
Armament
7 hardpoints
Up to 1,500 lb (680 kg) on the two inboard weapons stations
Up to 750 lb (340 kg) on the two middle stations
Up to 150 lb (68 kg) on the outboard stations
Center station not used
Up to 14 AGM-114 Hellfire air to ground missiles can be carried or four Hellfire missiles and two 500 lb (230 kg) GBU-12 Paveway II laser-guided bombs. The 500 lb (230 kg) GBU-38 Joint Direct Attack Munition (JDAM) can also be carried. Testing is underway to support the operation of the AIM-92 Stinger air-to-air missile.
Avionics
AN/APY-8 Lynx II radar Raytheon SeaVue Marine Search Radar, on the Guardian
variants
AN/DAS-1 MTS-B Multi-Spectral Targeting System
